Industrial engineering ceramics
Positively challenging to the Most Up-dated Techniques

Ceramics ,which are made by baking inorganic materials, are drawing close attention and are being developed as the materials which have superior characteristics on such as abrasion resistance, corrosion resistance and heat resistance, and also have properties which metallic materials do not possess. We, at Industrial Engineering Ceramics Department of Takao Manufacture Co.,Ltd., have manufactured ceramics materials such as new raw materials highly evaluated as high tenacity Zirconia and slide members, and heat resistance materials excellent in high temperature property and thermal shock, applying every possible molding methods in addition to conventional almina and titania ceramics products since 1973 when we started manufacturing ceramics products. We manufacture parts of fine ceramics under the consistent process from adjustment of raw materials, molding, baking up to lapping with our unique technology , utilizing the properties of fine ceramics which metallic materials do not possess, and supply our customers with them at requested shapes and requested lots.

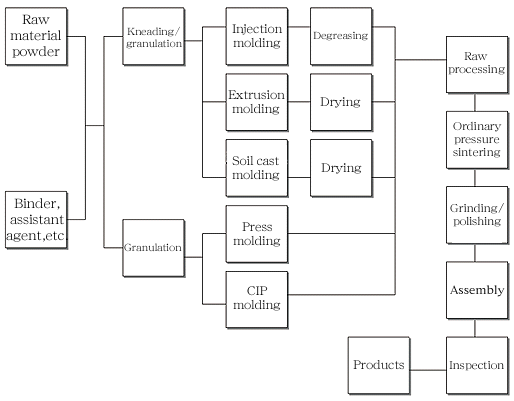

Manufacture process of ceramics from the adjustment to the processing of raw materials.
page top

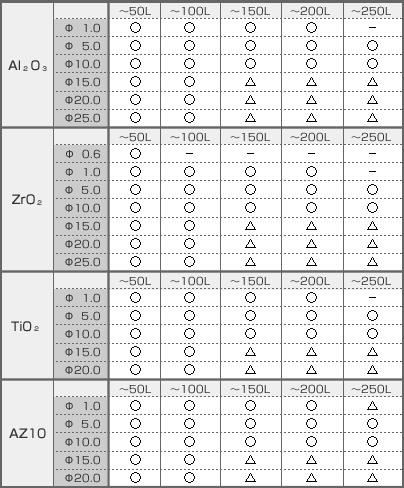

Ceramics Bar
Ceramics Bar


○...Standard
△...Non-standard

page top

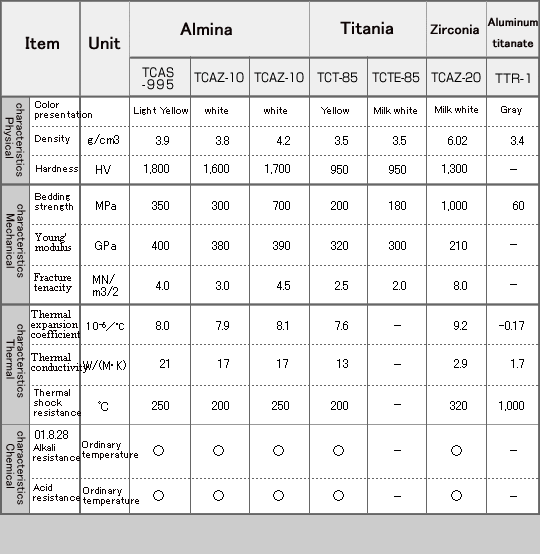

Guidance of Products
Almina ceramics TCAS-998・995,TCAS-98・96
These materials have superior properties on such as mechanical strength, hardness, abrasion resistance and corrosion resistance that can be brought about from crystal structure and also have superior characteristics on heat resistance in addition to smoothness due to homogeneity of the surface. TCAS-96 has superior property as insulating material, and TCAS-998 is the grade, improved version of TCAS-995, whose surface condition is further improved as mirror reflection.
page top
Almina ceramics TCAZ-10 Series
TCAZ-10 is the enhanced version of TCAS-995 in the area of slide member, and has both higher corrosion resistance and higher surface smoothness than normal almina ceramics have.
page top
Titania ceramics TCT-85・TCTE-85
Widely used as guides for spinning genny such as oiling roller, the unique product of Takao manufacture, utilizing the characteristics of low friction unique to titanium oxide, where almina ceramics can not be applied to. TCTE-85 is the grade in which conductivity is especially added.
page top
Zirconia ceramics with high tenacity TCAZ-20
Partially stabilized zirconia has tenacity which metallic materials commonly possess, so has characteristics of very low possibility to be broken, and is expanding its application field to blade, gauge and plunger and so on in place of metallic materials.
page top
Low expansive ceramics TTR-1
TTR has very high heat resistance and very low thermal expansion coefficient. Therefore it has superior property for thermal shock caused by rapid heating and quenching.
page top
