Physical and chemical equipment

Our company was founded in March 1902, which goes back to the time when Tohzo Takao started the manufacture undertaking of physical and chemical glass equipment. Since then, the company has consistently manufactured the glasswares being used in the field of physics and chemistry, and has continuously supplied them to a wide field of universities, government and municipal offices and industrial worlds over about a century. Needless to say, the glass processing techniques, which have been accumulated here, have become the present industry basis.

In order to respond to the further wide users' needs with the actual records and reliance cultivated in these kinds of experience, we have been positively developing and expanding the commodities utilizing the special features of such glass as the parts for medical treatment examination, high accuracy electronic parts and glass parts for analysis.

In the future too, we hope to contribute to the development of science field responsive to a wide range of needs with a diversity of business items.

Dioxin Sampling Instrument
TAKAO's dioxin sampling Instrument Model TSY-001 best suits for sampling the exhaust gas specimens.

Sampling of dioxins in exhaust gas involved such various problems that the sampling space is narrow, that a long time is needed for the preparation and that the behavior range is limited due to the presence of high platform work and obstacles. For solving these obstacles, we are selling a lightweight and compact dioxin sampling Instrument Model TSY-001.
Needless to say, this sampling Instrument complies with the "Dioxins standard measuring/analyzing manual in the wastes disposal shown by Maintenance Section of Water Supply Environment Department in Living Hygiene Bureau of the Ministry of Welfare in February 1990".

<Distinctive features>
1.Unrivaled movement because of its lightweight and compact design.
2.The instrument can be assembled on the site for shortening the preparation time.
3.The instrument can be moved and transported safety.
4. The instrument can be set in the sampling case, and is rich in the conservation even in the glass machine.
5.Enhancement in sampling accuracy.
Parts statement of dioxin sampling Instrument
Outline chart of exhaust gas sampling method
Dioxin sampling device
page top

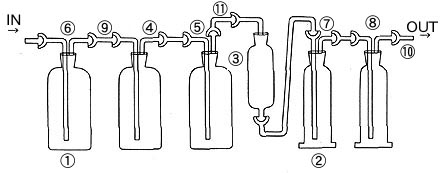

Parts statement of dioxin sampling Instrument
This Instrument facilitates its assembly on the site, and considers also the safety and conservation of thereafter movement and transportation in addition to the measurement.
■The parts statement is as follows:
1. Absorption tube (1) 3PCS 8. Middle tube(5) 1PCS 15. T19 clip 1PCS
2. Absorption tube (2) 2PCS 9. Manifold(1) 3PCS 16. SUS pipe 1PCS
3. XAD-2(tube) 1PCS 10. Manifold (2) 2PCS 17. Double leaf clamp 1PCS
4. Middle tube(1) 1PCS 11. Manifold (3) 1PCS 18. Muff 1PCS
5. Middle tube(2) 1PCS 12. Manifold (4) 1PCS 19. Teflon tube 1PCS
6. Middle tube(3) 1PCS 13. Teflon Manifold 2PCS
7. Middle tube(4) 1PCS 14. Joint clip 12PCS
In addition, we make ready for the suction nozzles, manifolds, dust tubes, filter paper holders, etc., and you are asked to request us for the data.
page top
Outline chart of exhaust gas sampling method
Survey in advance ●Properties of exhaust gas
●Measuring position and shape of duct
●Safety of work
●Presence of power source and water supply
Preparation for devices ●Purification of filter paper and absorbent
●Selection of tools
●Setting of uniform velocity absorption quantity
Assembly of sampling instrument
Specimen sampling ●Adjustment of absorption quantity at every 60 minutes
●Replacement of filter paper (together with the holder) if necessary.
Conservation/transportation of specimen ●Conservation of filter papers
●Intensification and conservation of captured liquid
●The column shall be sealed for the absorbent, and the absorbent shall be conserved in the light shielded status.
●Washing of nozzles and conduits, and collection and conservation of washing liquid.
page top
Dioxin sampling device
The tool has cleared various such sampling environment conditions as a high place, a narrow place, etc.!! A diversity of sampling tools expands the sampling possibility.
(1) Nozzle
Use the quart if the exhaust gas temperature is higher than 500℃ and use the PX if the temperature is lower than the said level.
Model Material Size & shape
TD-201-S1 Quart 口Inside diameter φ4
TD-201-S2 Quart 口Inside diameter φ6
TD-201-S3 Quart 口Inside diameter φ8
TD-201-P1 PX 口Inside diameter φ4
TD-201-P2 PX 口Inside diameter φ6
TD-201-P3 PX 口Inside diameter φ8
(2)Sampling tube
Select the material and shape (presence of cooler) depending on the service situation.
Model Material Description Size & shape
TD-202-SR Quart With cooling device Overall length1000
TD-202-SO Quart Usual Overall length1000
TD-202-PO PX Usual Overall length1000
(3)Manifold
To be adopted for sampling a micro volume of dioxin. Select the material and shape (straight, corner) depending on the situation.
Model Material Description Size & shape
TD-203-S1 Quart Straight type Overall length500
TD-203-S2 Quart Straight type Overall length750
TD-203-S3 Quart Straight type Overall length1000
TD-203-S4 Quart Corner type L1 300 L2 100
TD-203-S5 Quart Corner type L1 500 L2 200
TD-203-S6 Quart Corner type L1 1000 L2 300
TD-203-P1 PX Straight type Overall length500
TD-203-P2 PX Straight type Overall length750
TD-203-P3 PX Straight type Overall length1000
TD-203-P4 PX Corner type L1 300 L2 100
TD-203-P5 PX Corner type L1 500 L2 200
TD-203-P6 PX Corner type L1 1000 L2 300
(4)Filter paper holder
This holder has been designed for the cylindrical filter paper 25X90.
Model Material Size & shape
TD-204 PX Cylindrical filter paper 25X90
(5)Dust tube
With a thermocouple. Decide the need for using this tube depending on the situation.
Model Material
TD-205 PX
(6)Thermocouple
The thermocouple is used for measuring the temperatures of dust tube and resin column.
Model Size & shape
TD-206 Kφ0.65 1m
(7)Teflon union
This union couples the sampling unit with the suction pump.
Model
TD-207
(8)Teflon tube
This tube is used for coupling the suction pump from the sampling unit.
Model
TD-208
(9)Ball joint clip
This clip is used for fixing the ball joint portion.
Model
TD-209
(10)Glass Carrying case for glassware
This case can store and transport 1 set portion of sampling unit glass devices.
Model Size & shape
TD-221 620X430X350m/m
(11)Carrying case for accessory
This case can store and transport such accessories as the nozzle, sampling tube, etc. that are likely to be broken.
Model Size & shape
TD-222 1150X290X90m/m
Mist stop . Air pump . Gas meter Separately demand for the data.
